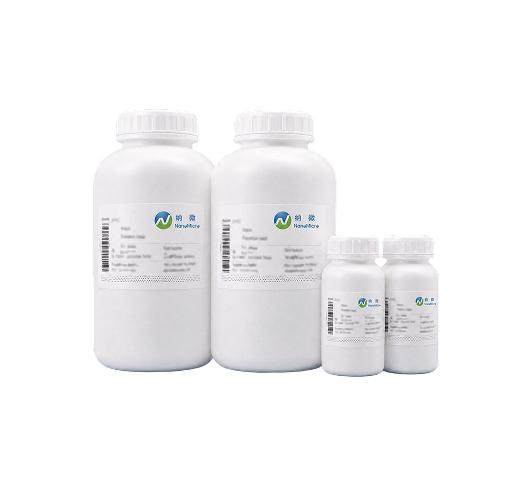

UniGel-80CM Ion Exchange Chromatography Resin
The UniGel series ion exchange resins are based on NanoMicro's monodisperse polymer microspheres. After hydrophilic surface modification, ion exchange groups are bonded to the matrix. Multiple product series are available to meet the demands of capture, intermediate purification, polishing, and analytical purification. These resins offer excellent biomolecule compatibility and bed stability, providing customers with integrated solutions from laboratory purification to industrial-scale production of biological samples.
Performance Specifications
Swipe Left
| Product Model | UniGel-80CM |
| Separation Principle | Weak cation exchange |
| Matrix | Polymethacrylate |
| Particle Size | 80 μm |
| Ligand | —CH2COO- |
| Ligand Density | ~0.28 meq/mL |
| Dynamic Binding Capacity | ~105 mg/mL (Lys) |
| Maximum Pressure | 0.5 MPa |
| CIP | 0.5 M NaOH |
| Recommended Flow Rate | 150-750 cm/h |
| pH Stability | 2-12 |
| Chemical Stability | All commonly used buffers, 1 M acetic acid, 1 M sodium hydroxide, 1 M hydrochloric acid, 70% ethanol, 30% isopropanol, 30% acetonitrile, 1% SDS, 6 M guanidine hydrochloride, 8 M urea and other common organic solvents; avoid contact with strong oxidizing agents. |
| Operating Temperature | 4-30 ℃ |
Ordering Information
Swipe Left
| Product | Package Size | Catalog # |
| UniGel-80CM | 30 mL | 04081-080100-2030 |
| 50 mL | 04081-080100-2050 | |
| 100 mL | 04081-080100-2100 | |
| 300 mL | 04081-080100-2300 | |
| 500 mL | 04081-080100-2500 | |
| 1 L | 04081-080100-1001 | |
| 5 L | 04081-080100-1005 | |
| 10 L | 04081-080100-1010 | |
| 50 L | 04081-080100-1050 | |
| 100 L | 04081-080100-1100 |
Note: Pre-packed columns are available in 7.7 mm × 22 mm, 16 mm × 25 mm, and 7.7 mm × 100 mm formats. For additional specifications or custom requirements, please contact us.
