UniGel-80SP Ion Exchange Chromatography Resin
The UniGel series ion exchange resins are based on NanoMicro's monodisperse polymer microspheres. After hydrophilic surface modification and ion exchange group coupling, we offer multiple product series to meet the demands of capture, intermediate purification, polishing, and analytical purification. With excellent biomolecule compatibility and bed stability, our solutions provide a complete purification platform from laboratory to industrial scale.
Performance Specifications
Swipe Left
| Product Model | UniGel-80SP |
| Separation Principle | Strong cation exchange |
| Matrix | Polymethacrylate |
| Particle Size | 80 μm |
| Ligand | -(CH2)3SO3- |
| Ligand Density | ~0.11 meq/mL |
| Dynamic Binding Capacity | ~115 mg/mL (Lys) |
| Maximum Pressure | 0.5 MPa |
| CIP | 0.5 M NaOH |
| Recommended Flow Rate | 150-750 cm/h |
| pH Stability | 2-12 |
| Chemical Stability | All common buffers, 1 M acetic acid, 1 M NaOH, 1 M HCl, 70% ethanol, 30% isopropanol, 30% acetonitrile, 1% SDS, 6 M guanidine HCl, 8 M urea and other common organic solvents; avoid strong oxidizing agents. |
| Operating Temperature | 4-30 ℃ |
Ordering Information
Swipe Left

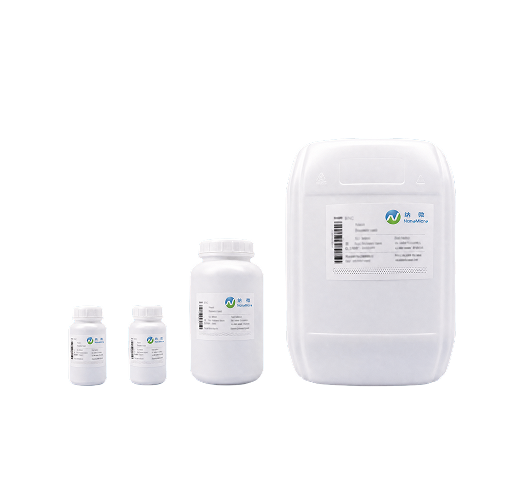

| Product | Package Size | Catalog # |
| UniGel-80SP | 30 mL | 04082-080100-2030 |
| 50 mL | 04082-080100-2050 | |
| 100 mL | 04082-080100-2100 | |
| 300 mL | 04082-080100-2300 | |
| 500 mL | 04082-080100-2500 | |
| 1 L | 04082-080100-1001 | |
| 5 L | 04082-080100-1005 | |
| 10 L | 04082-080100-1010 | |
| 50 L | 04082-080100-1050 | |
| 100 L | 04082-080100-1100 |
Note: Pre-packed columns are available in 7.7 mm × 22 mm, 16 mm × 25 mm, and 7.7 mm × 100 mm formats. For additional specifications or custom requirements, please contact us.
