SDL Cost‑Effective Protein Chromatography System

The SDL protein purification system features an integrated, compact design with minimal dead volume in the flow path. Lightweight and space-saving, it can be placed in a chromatography cold cabinet. The powerful chromatography workstation software provides intuitive and flexible method editing, system control, and data analysis. The SDL protein purification system is compatible with both imported and domestic chromatography columns, delivering robust performance and exceptional results — making it an indispensable tool for protein purification researchers.

Product Description

SDL features a fixed modular configuration.

SDL features an integrated design with optimal dimensions, saving space and suitable for cold cabinet use.

All modules face the user, making it easier to understand the relationship between modules.

The compact design is ideal for laboratory protein purification.

The powerful SCG chromatography workstation provides intuitive and flexible method editing, system control, and data analysis.

Compatible with GE, Bio-Rad, and other imported or domestic chromatography columns.

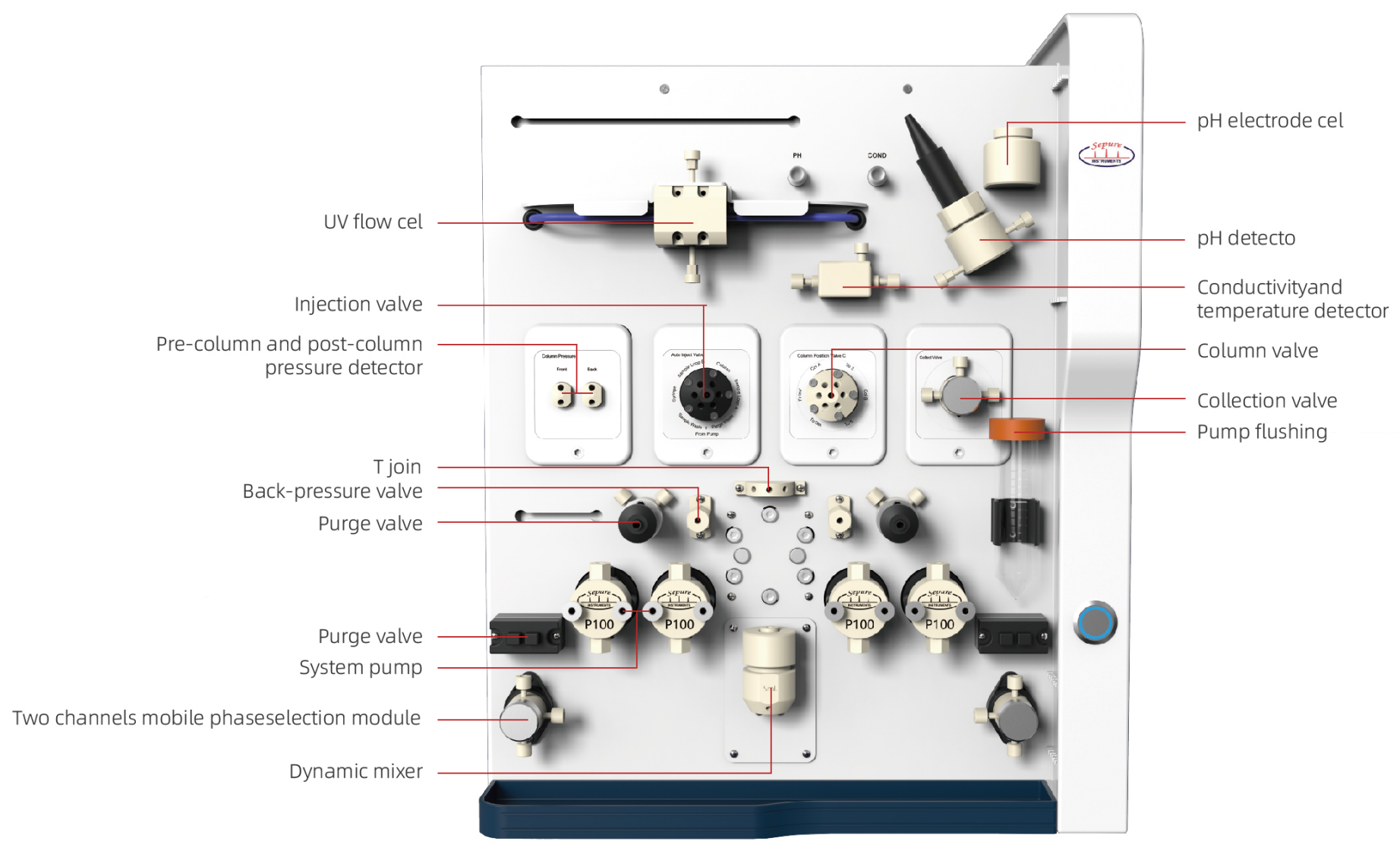

屏幕截图 2026-09-07 105924.png

· Cost-effective integrated design, eliminating complex wiring with a more rational flow path layout.

· Lightweight and compact, can be placed in a chromatography cold cabinet.

· The powerful PURfect P® chromatography workstation software provides intuitive and flexible method editing, system control, and data analysis.

· Built-in column library, compatible with both imported and domestic chromatography columns.

· Free lifetime software upgrades.

· SDL030 supports mg-scale purification, while SDL100/150 support g-scale purification.

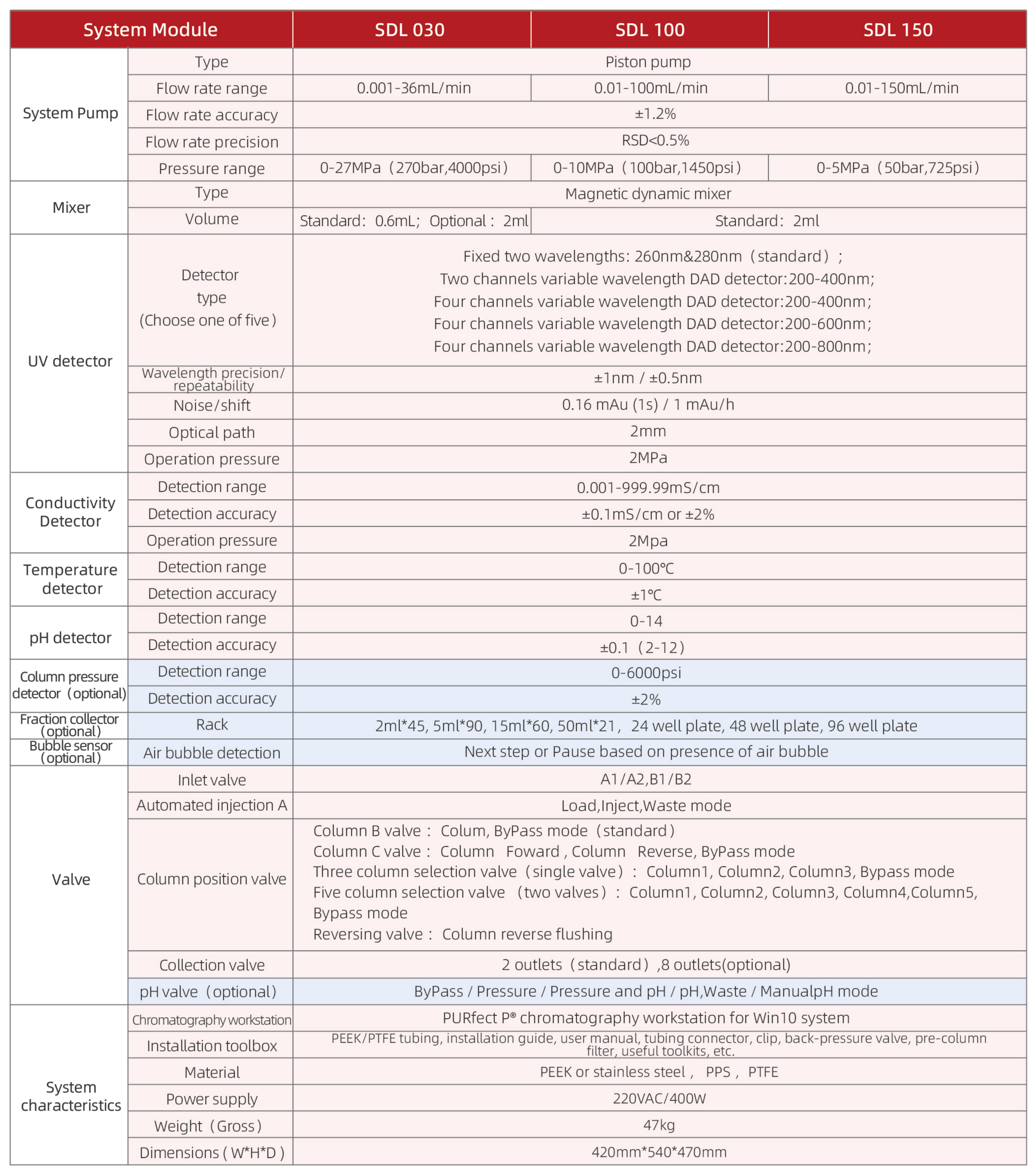

Performance Specifications

Swipe Left
