TrueSynth® Automated Oligonucleotide Synthesizer

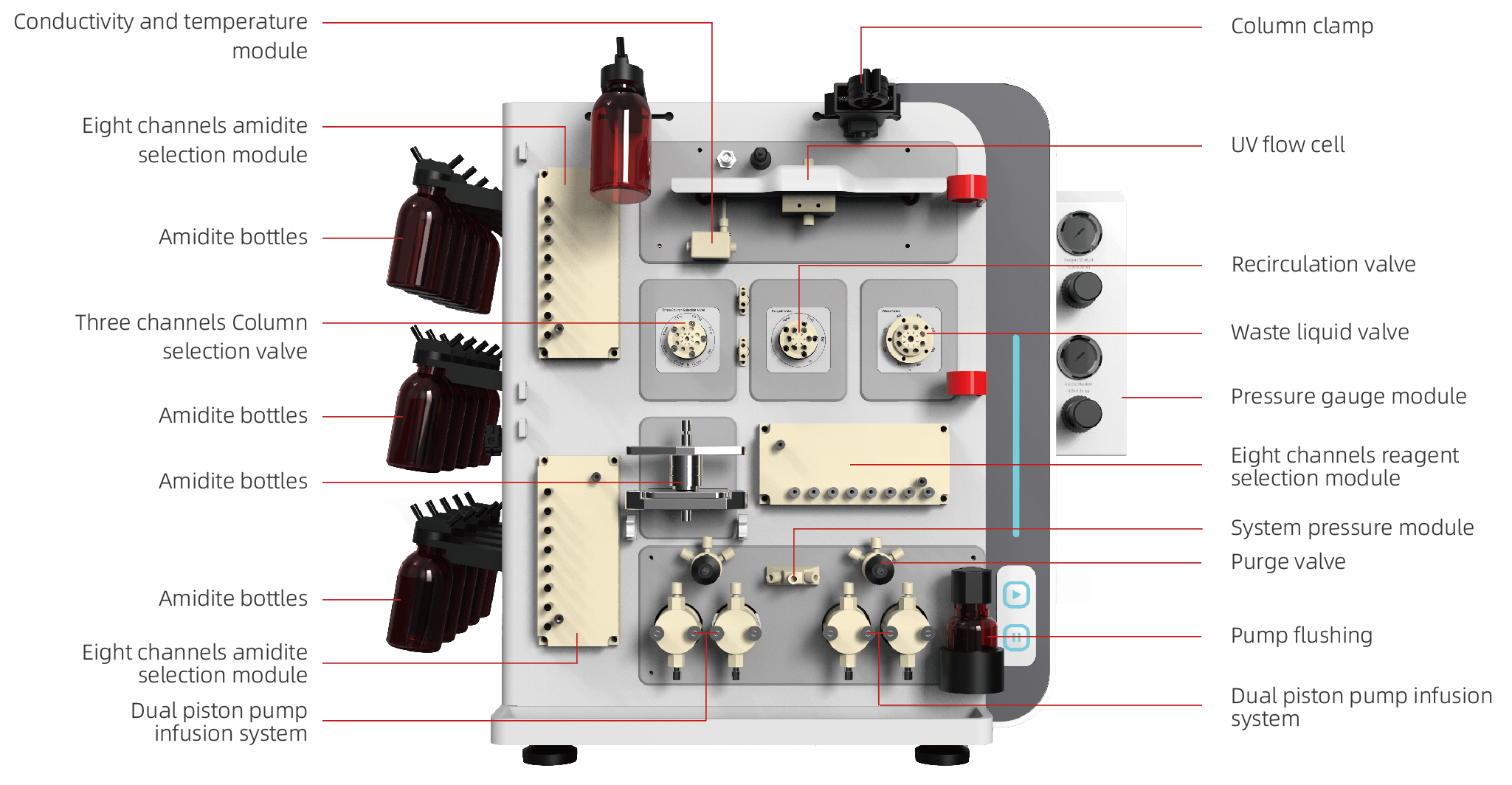

The STS0100 is a laboratory‑grade, fully automated oligonucleotide synthesizer that uses the phosphoramidite method, covering synthesis range of 50 μmol to 9 mmol. It is driven by a high‑precision plunger pump, which precisely controls reaction speed and time. The carefully designed inlet and outlet valves completely eliminate the risk of cross‑contamination due to cross‑talk introduced by conventional rotary valves. Optimized flow path significantly reduces the usage of monomers and reagents, ensuring cost‑effective, efficient, and high‑quality synthesis results. This device can be applied to the synthesis of small nucleic acids such as siRNA, miRNA, ASO, and aptamers.
Product Description
High‑precision metering pump, providing excellent flow accuracy and repeatability.
The system's pipeline is made of PEEK material, resistant to organic reagents, and offers good biocompatibility.
Smaller volume, larger synthesis range.
The optimized system flow path reduces dead volume, minimizing the excessive use of monomers and solvents.
Powerful online monitoring module, real‑time monitoring of UV, conductivity, temperature, pressure, and other parameters.
Recyclable monomer reagents for higher synthesis efficiency.
Lower monomer consumption and less waste liquid generation, reducing synthesis costs.
User‑friendly software interface, flexible method editing, and high automation.
Simple and clear synthesis process, easy to scale up linearly.
Professional technical support and after‑sales service, with lifetime free software upgrades.

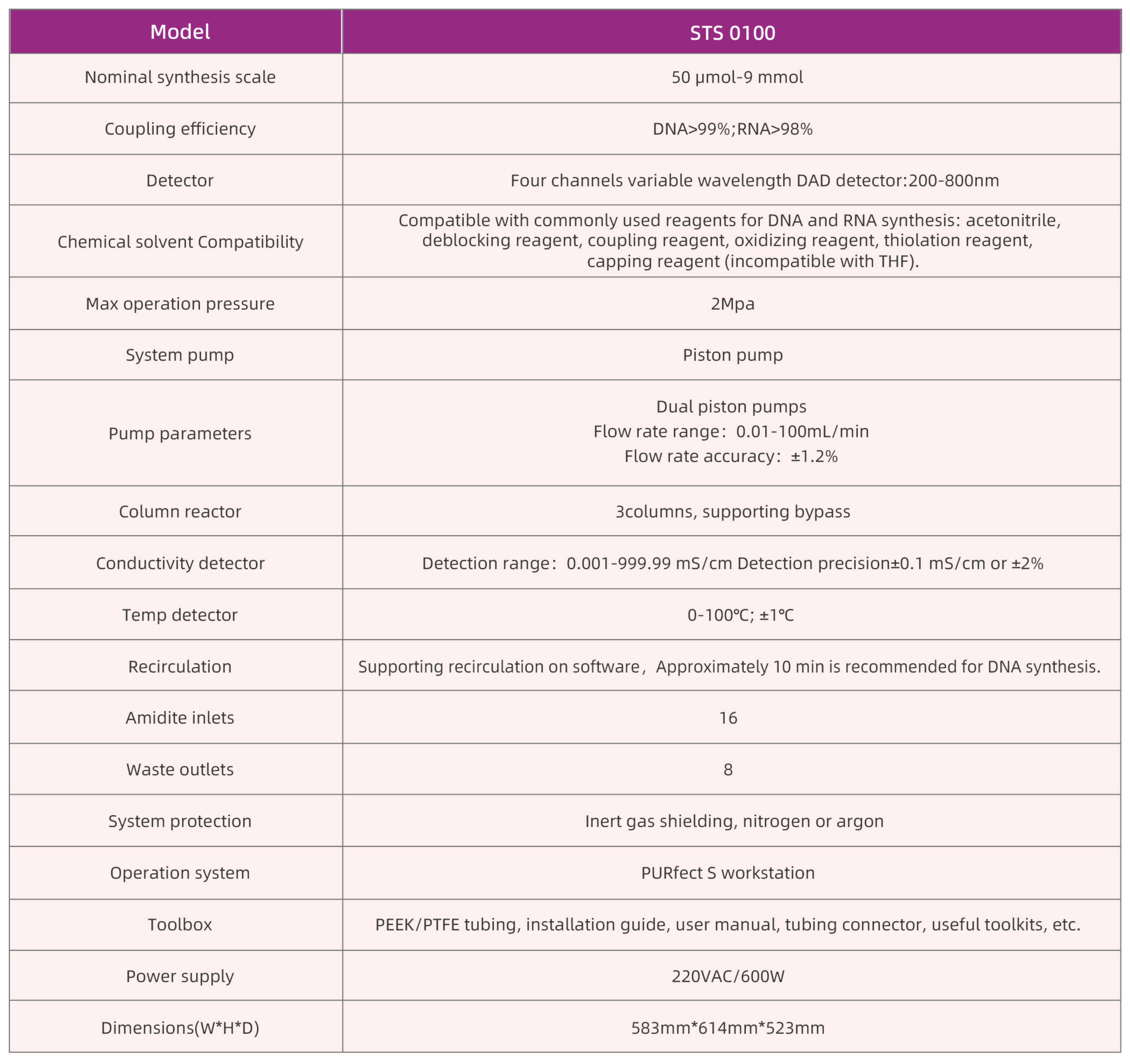

Performance Specifications
