Pneumocandin B0 Purification Case Study

Introduction

Echinocandins are a new class of broad-spectrum antifungal drugs. Their mechanism of action involves inhibiting the biosynthesis of β-1,3-glucan in fungal cell walls (human cells lack cell walls), resulting in low toxicity to humans. They offer advantages including high selectivity, minimal adverse reactions, and excellent safety. Caspofungin was the first echinocandin antifungal drug to be marketed. It rapidly kills most Candida species and inhibits most Aspergillus species. Clinical data demonstrate that caspofungin has a broad antifungal spectrum, no cross-resistance, and a favorable safety profile. This product is expected to achieve import substitution, with promising market prospects.

Pneumocandins are a class of novel cyclic lipopeptide natural antifungal drugs produced by fermentation of _Zalerion arboricola_, featuring a cyclic hexapeptide nucleus and a fatty acid side chain. They are classified into three types based on the position of proline substitution on the nucleus: Pneumocandin A0, Pneumocandin B0, and Pneumocandin C0. Among these, the cyclic hexapeptide nucleus obtained after removal of the fatty acid side chain from B0 is the primary raw material for synthesizing the echinocandin drug caspofungin.

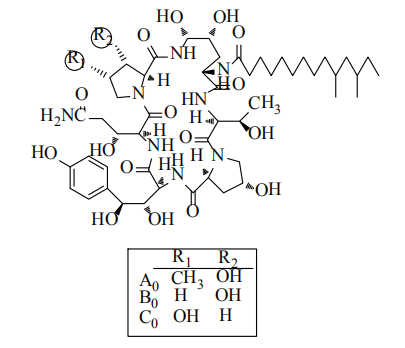

Figure 1. Chemical structures of Pneumocandin analogs

Challenges in Pneumocandin B0 Purification

As a pharmaceutical intermediate for caspofungin, Pneumocandin B0 crude product contains not only the target compound but also A0, B1, B2, C0 and other components, along with significant amounts of pigments and other impurities. Due to the complex metabolites present in the crude API, and the fact that Pneumocandin B0 serves as the substrate for the next step in caspofungin synthesis, high purity is required—particularly stringent control over critical impurities A0, B1, B2, and C0—making the separation and purification of Pneumocandin B0 a significant challenge.

Purification Results

The challenge in this case was that the customer provided no process background, requiring complete process development. The requirements were high B0 content with low or essentially zero levels of 5 unknown impurities, presenting considerable difficulty in process development.

Leveraging extensive experience in resins and process development, NanoMicro successfully developed a purification process for Pneumocandin B0 using UniSil®10-100 chromatography resin. The process features are as follows:

1. Excellent impurity removal with purity reaching above 96.99%; B2 and C0 are essentially zero, and A0, B1, and B are almost completely removed.

2. Isocratic elution mode simplifies process steps and reduces equipment requirements.

3. Dichloromethane, methanol, and other solvents can be recycled, reducing costs.

4. The final yield reaches above 80%, meeting all customer purification requirements while improving purity and reducing production costs.

Conclusion

Through years of dedicated effort, NanoMicro has developed specialized silica chromatography resins and application processes. For Pneumocandin B0, we developed a regenerable and reusable monodisperse spherical silica chromatography resin with surface modification, paired with a novel purification process. This successfully replaces the amorphous silica used in B0 purification, significantly improving purification efficiency and markedly reducing solvent consumption. In addition to substantial savings in resin costs, this eliminates expensive solid waste treatment expenses, delivering significant environmental benefits. Our solution meets the requirements for efficient separation and purification in large-scale Pneumocandin B0 production, improving production efficiency and reducing manufacturing costs.

Note: For the full version, please contact us.
