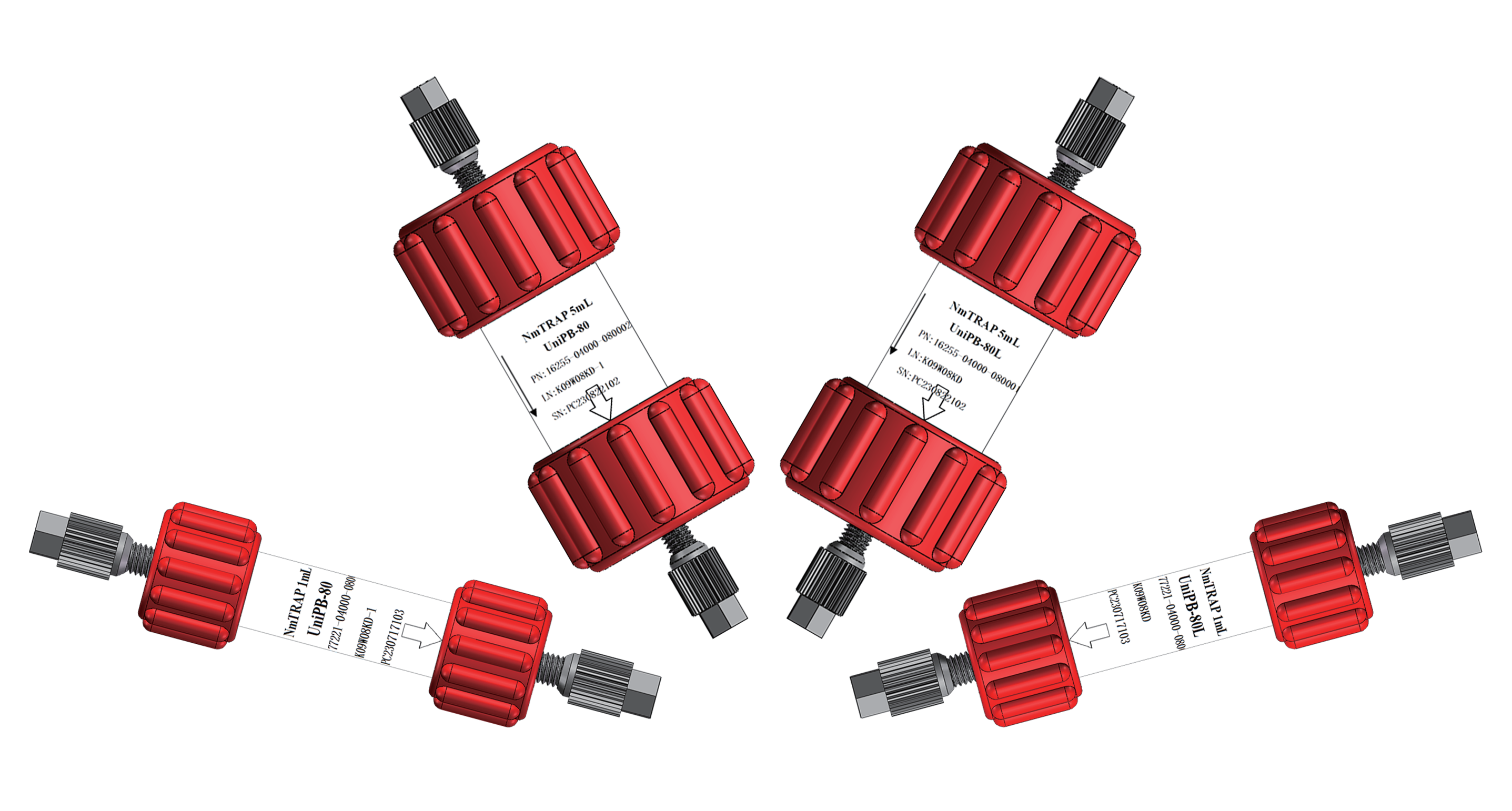

Phenylboronic Acid Affinity Pre-packed Column

Phenylboronic acid affinity chromatography leverages the covalent coordination between boronic acid and cis-diol compounds for separation and purification. Under alkaline conditions, boronic acid groups form stable five-membered ring complexes with cis-diol structures, enabling specific adsorption of glycosylated proteins. Under acidic conditions, the complexes dissociate, and glycoproteins are eluted. Additionally, boronate affinity media can be used for the purification of cis-diol-containing compounds such as nucleosides, nucleotides, and saccharides.

  • 苯硼酸亲和层析预装柱.png

Product Description

NanoMicro phenylboronic acid pre-packed columns utilize monodisperse rigid hydrophilic PMMA matrices. High ligand density delivers high dynamic binding capacity. Leveraging the specific reversible binding between phenylboronic acid and cis-diols, our columns efficiently purify plasmids, glycoproteins, and nucleoside polysaccharides. They offer high flow rates with low back pressure, resistance to repeated alkaline CIP, minimal ligand leakage, and low non-specific adsorption. Mild elution conditions protect nucleic acid/glycoprotein integrity. Our fully domestic, self-developed industrial chain is tailored for CGT industrial-scale production.

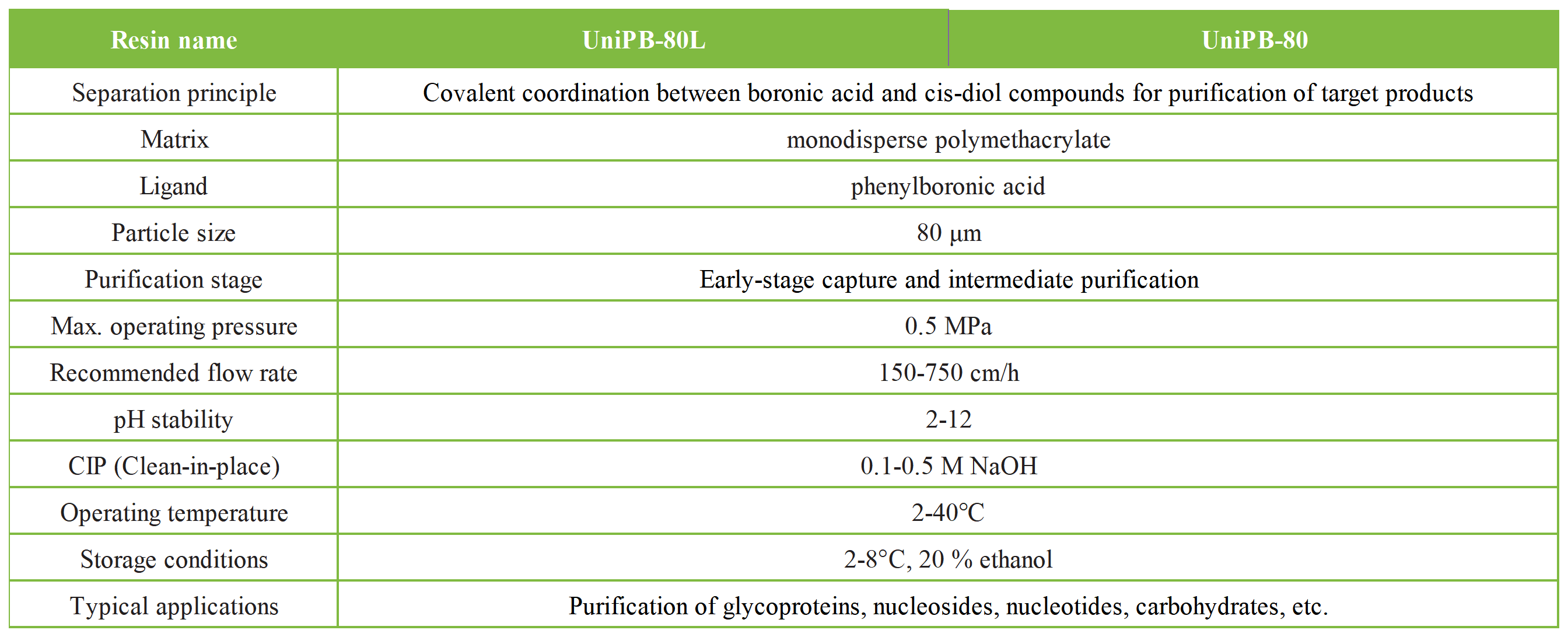

Performance Specifications

Swipe Left

苯硼酸亲和层析预装柱_苯硼酸亲和层析介质-技术参数表 EN.png

Ordering Information

Swipe Left
Prepacked column specificationsCat. No.Prepacked column specificationsCat. No.
NmTRAP 1mL, UniPB-80L77221-04000-080001NmTRAP 1mL, UniPB-8077221-04000-080002
NmTRAP 5mL, UniPB-80L16255-04000-080001NmTRAP 5mL, UniPB-8016255-04000-080002
NmSCREEN 4.7mL, UniPB-80L77105-04000-080001NmSCREEN 4.7mL, UniPB-8077105-04000-080002
NmPREP 16/100, UniPB-80L16103-04000-080001NmPREP 16/100, UniPB-8016103-04000-080002
NmPREP 26/100, UniPB-80L26153-04000-080001NmPREP 26/100, UniPB-8026153-04000-080002
NmVALID 8/100, UniPB-80L08101-04000-080001NmVALID 8/100, UniPB-8008101-04000-080002
NmVALID 8/200, UniPB-80L08201-04000-080001NmVALID 8/200, UniPB-8008201-04000-080002
NmVALID 11/100, UniPB-80L11101-04000-080001NmVALID 11/100, UniPB-8011101-04000-080002
NmVALID 11/200, UniPB-80L11201-04000-080001NmVALID 11/200, UniPB-8011201-04000-080002
NmVALID 16/100, UniPB-80L16106-04000-080001NmVALID 16/100, UniPB-8016106-04000-080002
NmVALID 16/200, UniPB-80L16206-04000-080001NmVALID 16/200, UniPB-8016206-04000-080002
NmVALID 26/100, UniPB-80L26106-04000-080001NmVALID 26/100, UniPB-8026106-04000-080002
NmVALID 26/200, UniPB-80L26206-04000-080001NmVALID 26/200, UniPB-8026206-04000-080002
NmVALID 35/100, UniPB-80L35101-04000-080001NmVALID 35/100, UniPB-8035101-04000-080002
NmVALID 35/200, UniPB-80L35201-04000-080001NmVALID 35/200, UniPB-8035201-04000-080002
NmVALID 50/100, UniPB-80L50106-04000-080001NmVALID 50/100, UniPB-8050106-04000-080002
NmVALID 50/200, UniPB-80L50206-04000-080001NmVALID 50/200, UniPB-8050206-04000-080002
NmPILOT 70/100，UniPB-80L70105-04000-080001NmPILOT 70/100，UniPB-8070105-04000-080002
NmPILOT 70/200，UniPB-80L70205-04000-080001NmPILOT 70/200，UniPB-8070205-04000-080002
NmPILOT 100/100，UniPB-80L10105-04000-080001NmPILOT 100/100，UniPB-8010105-04000-080002
NmPILOT 100/200，UniPB-80L10205-04000-080001NmPILOT 100/200，UniPB-8010205-04000-080002
NmPILOT 140/100，UniPB-80L14105-04000-080001NmPILOT 140/100，UniPB-8014105-04000-080002
NmPILOT 140/200，UniPB-80L14205-04000-080001NmPILOT 140/200，UniPB-8014205-04000-080002
NmPILOT 200/100，UniPB-80L20105-04000-080001NmPILOT 200/100，UniPB-8020105-04000-080002
NmPILOT 200/200，UniPB-80L20205-04000-080001NmPILOT 200/200，UniPB-8020205-04000-080002
