Nucleic Acid Affinity Pre-packed Columns
NW Rose® Plasmid/NW Rose® Plus Plasmid are two thiophilic affinity media based on agarose microspheres, utilizing the interaction between electron donors and acceptors to purify supercoiled plasmids. Under high-salt conditions, the ligand binds to plasmids with high affinity; after impurities are removed, the plasmid can be eluted by lowering the salt concentration of the buffer solution. NanoGel™ dT20 features a PS-DVB rigid matrix with dT20 ligands covalently bonded via a linker on the surface, enabling affinity binding to the poly(A) tail at the 3' end of in vitro transcribed mRNA, greatly simplifying the mRNA capture process.
Product Description
NW Rose® Plasmid/NW Rose® Plus Plasmid feature optimized 2-mercaptopyridine ligand density, maintaining high binding capacity for high-molecular-weight supercoiled DNA even at high flow rates.
NanoGel™ dT20 employs a monodisperse rigid hydrophilic PS-DVB matrix, offering alkali-resistant CIP, low ligand leaching, low non-specific adsorption, and support for high-throughput industrial production. The plasmid format efficiently enriches supercoiled plasmids and removes plasmid templates in a single step.
Fully system-compatible: compatible with AKTA and domestic bioprocess chromatography systems, with universal connectors and buffer systems fully compatible with imported media.

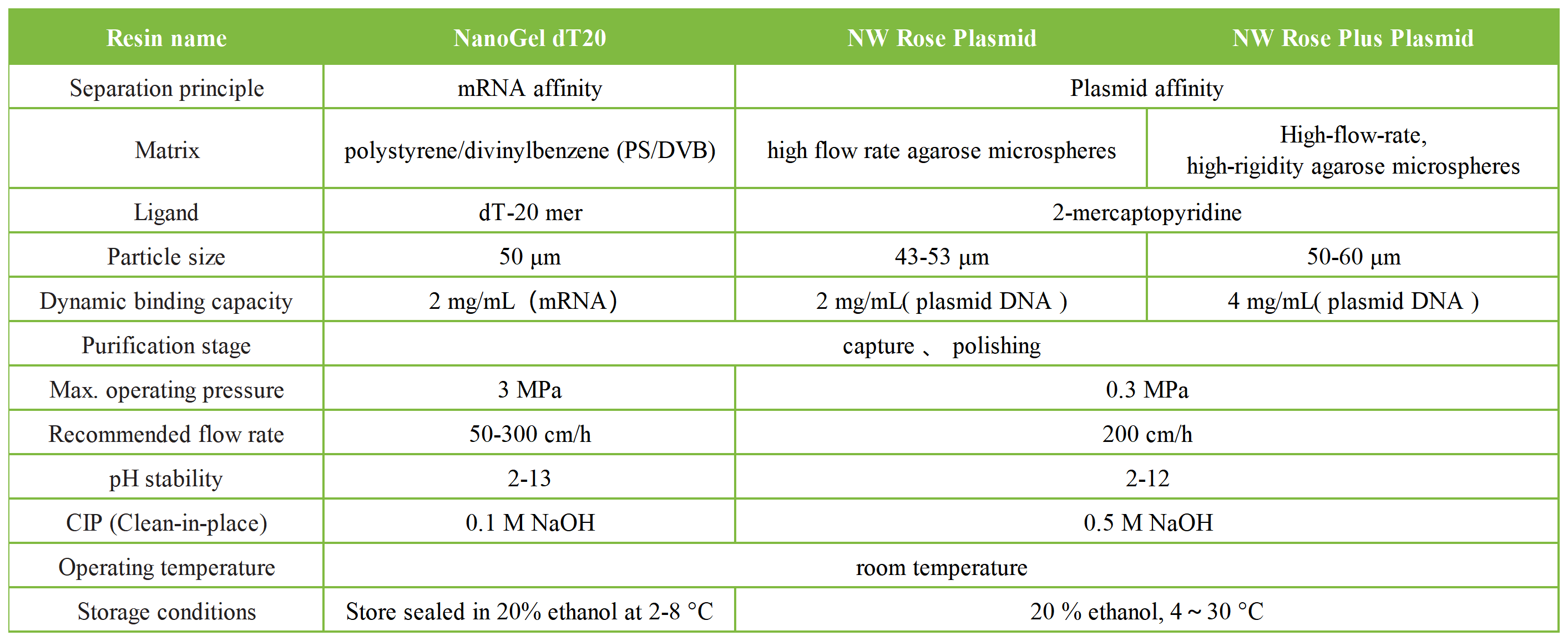

Performance Specifications

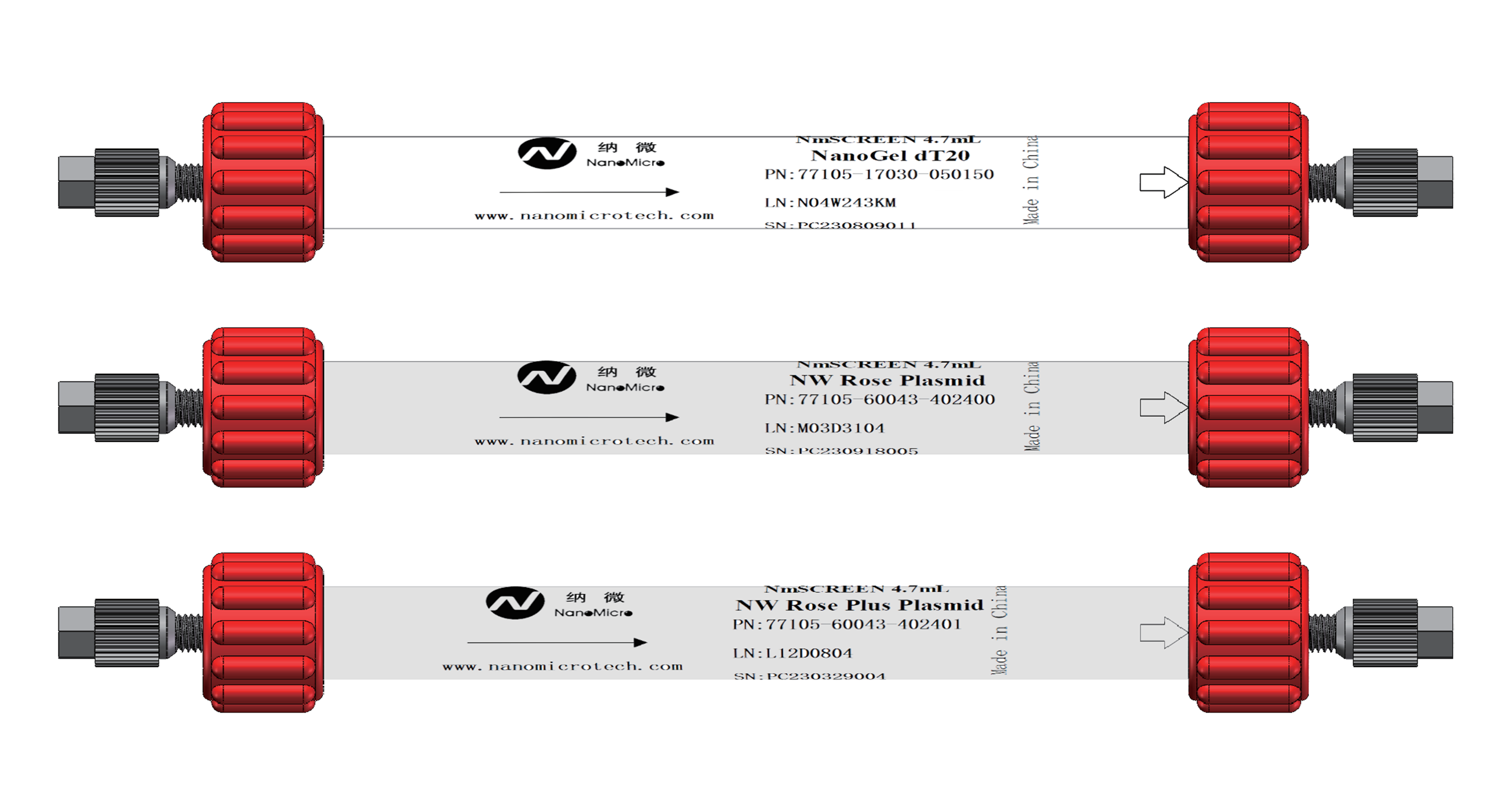

Ordering Information
| Prepacked column specifications | Cat. No. | Prepacked column specifications | Cat. No. |
| NmTRAP 1mL, NanoGel dT20 | 77221-17030-050150 | NmTRAP 1mL, NW Rose Plasmid | 77221-60043-402400 |
| NmTRAP 5mL, NanoGel dT20 | 16255-17030-050150 | NmTRAP 5mL, NW Rose Plasmid | 16255-60043-402400 |
| NmSCREEN 4.7mL, NanoGel dT20 | 77105-17030-050150 | NmSCREEN 4.7mL, NW Rose Plasmid | 77105-60043-402400 |
| NmPREP 16/100, NanoGel dT20 | 16103-17030-050150 | NmPREP 16/100, NW Rose Plasmid | 16103-60043-402400 |
| NmPREP 26/100, NanoGel dT20 | 26153-17030-050150 | NmPREP 26/100, NW Rose Plasmid | 26153-60043-402400 |
| NmVALID 8/100, NanoGel dT20 | 08101-17030-050150 | NmVALID 8/100, NW Rose Plasmid | 08101-60043-402400 |
| NmVALID 8/200, NanoGel dT20 | 08201-17030-050150 | NmVALID 8/200, NW Rose Plasmid | 08201-60043-402400 |
| NmVALID 11/100, NanoGel dT20 | 11101-17030-050150 | NmVALID 11/100, NW Rose Plasmid | 11101-60043-402400 |
| NmVALID 11/200, NanoGel dT20 | 11201-17030-050150 | NmVALID 11/200, NW Rose Plasmid | 11201-60043-402400 |
| NmVALID 16/100, NanoGel dT20 | 16106-17030-050150 | NmVALID 16/100, NW Rose Plasmid | 16106-60043-402400 |
| NmVALID 16/200, NanoGel dT20 | 16206-17030-050150 | NmVALID 16/200, NW Rose Plasmid | 16206-60043-402400 |
| NmVALID 26/100, NanoGel dT20 | 26106-17030-050150 | NmVALID 26/100, NW Rose Plasmid | 26106-60043-402400 |
| NmVALID 26/200, NanoGel dT20 | 26206-17030-050150 | NmVALID 26/200, NW Rose Plasmid | 26206-60043-402400 |
| NmVALID 35/100, NanoGel dT20 | 35101-17030-050150 | NmVALID 35/100, NW Rose Plasmid | 35101-60043-402400 |
| NmVALID 35/200, NanoGel dT20 | 35201-17030-050150 | NmVALID 35/200, NW Rose Plasmid | 35201-60043-402400 |
| NmVALID 50/100, NanoGel dT20 | 50106-17030-050150 | NmVALID 50/100, NW Rose Plasmid | 50106-60043-402400 |
| NmVALID 50/200, NanoGel dT20 | 50206-17030-050150 | NmVALID 50/200, NW Rose Plasmid | 50206-60043-402400 |
| NmPILOT 70/100,NanoGel dT20 | 70105-17030-050150 | NmPILOT 70/100,NW Rose Plasmid | 70105-60043-402400 |
| NmPILOT 70/200,NanoGel dT20 | 70205-17030-050150 | NmPILOT 70/200,NW Rose Plasmid | 70205-60043-402400 |
| NmPILOT 100/100,NanoGel dT20 | 10105-17030-050150 | NmPILOT 100/100,NW Rose Plasmid | 10105-60043-402400 |
| NmPILOT 100/200,NanoGel dT20 | 10205-17030-050150 | NmPILOT 100/200,NW Rose Plasmid | 10205-60043-402400 |
| NmPILOT 140/100,NanoGel dT20 | 14105-17030-050150 | NmPILOT 140/100,NW Rose Plasmid | 14105-60043-402400 |
| NmPILOT 140/200,NanoGel dT20 | 14205-17030-050150 | NmPILOT 140/200,NW Rose Plasmid | 14205-60043-402400 |
| NmPILOT 200/100,NanoGel dT20 | 20105-17030-050150 | NmPILOT 200/100,NW Rose Plasmid | 20105-60043-402400 |
| NmPILOT 200/200,NanoGel dT20 | 20205-17030-050150 | NmPILOT 200/200,NW Rose Plasmid | 20205-60043-402400 |
| NmTRAP 1mL, NW Rose Plus Plasmid | 77221-60043-402401 | NmVALID 35/100, NW Rose Plus Plasmid | 35101-60043-402401 |
| NmTRAP 5mL, NW Rose Plus Plasmid | 16255-60043-402401 | NmVALID 35/200, NW Rose Plus Plasmid | 35201-60043-402401 |
| NmSCREEN 4.7mL, NW Rose Plus Plasmid | 77105-60043-402401 | NmVALID 50/100, NW Rose Plus Plasmid | 50106-60043-402401 |
| NmPREP 16/100, NW Rose Plus Plasmid | 16103-60043-402401 | NmVALID 50/200, NW Rose Plus Plasmid | 50206-60043-402401 |
| NmPREP 26/100, NW Rose Plus Plasmid | 26153-60043-402401 | NmPILOT 70/100,NW Rose Plus Plasmid | 70105-60043-402401 |
| NmVALID 8/100, NW Rose Plus Plasmid | 08101-60043-402401 | NmPILOT 70/200,NW Rose Plus Plasmid | 70205-60043-402401 |
| NmVALID 8/200, NW Rose Plus Plasmid | 08201-60043-402401 | NmPILOT 100/100,NW Rose Plus Plasmid | 10105-60043-402401 |
| NmVALID 11/100, NW Rose Plus Plasmid | 11101-60043-402401 | NmPILOT 100/200,NW Rose Plus Plasmid | 10205-60043-402401 |
| NmVALID 11/200, NW Rose Plus Plasmid | 11201-60043-402401 | NmPILOT 140/100,NW Rose Plus Plasmid | 14105-60043-402401 |
| NmVALID 16/100, NW Rose Plus Plasmid | 16106-60043-402401 | NmPILOT 140/200,NW Rose Plus Plasmid | 14205-60043-402401 |
| NmVALID 16/200, NW Rose Plus Plasmid | 16206-60043-402401 | NmPILOT 200/100,NW Rose Plus Plasmid | 20105-60043-402401 |
| NmVALID 26/100, NW Rose Plus Plasmid | 26106-60043-402401 | NmPILOT 200/200,NW Rose Plus Plasmid | 20205-60043-402401 |
| NmVALID 26/200, NW Rose Plus Plasmid | 26206-60043-402401 |
