Connect Glass Preparation Columns - EZPacking Series Quick

Product Description

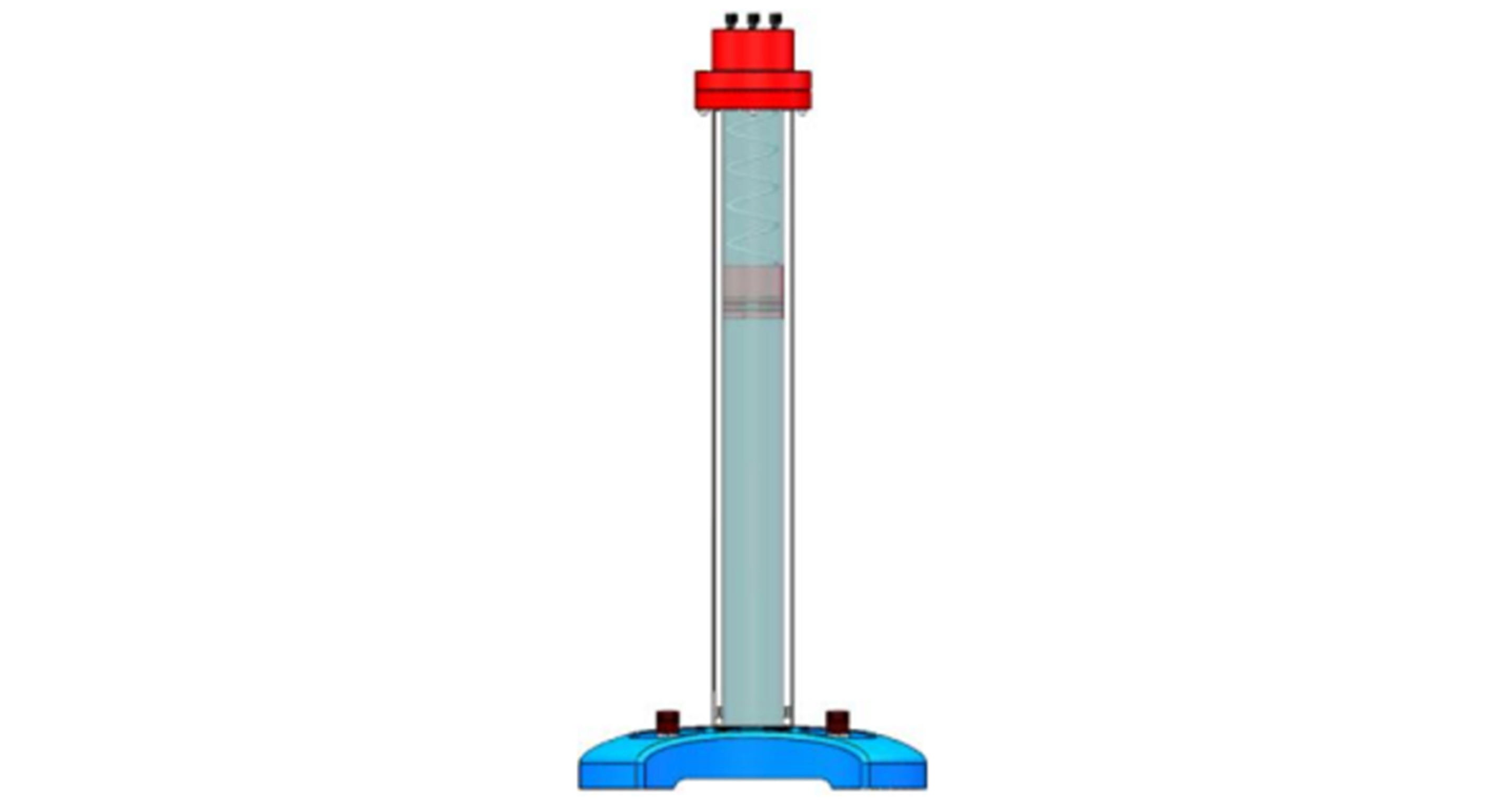

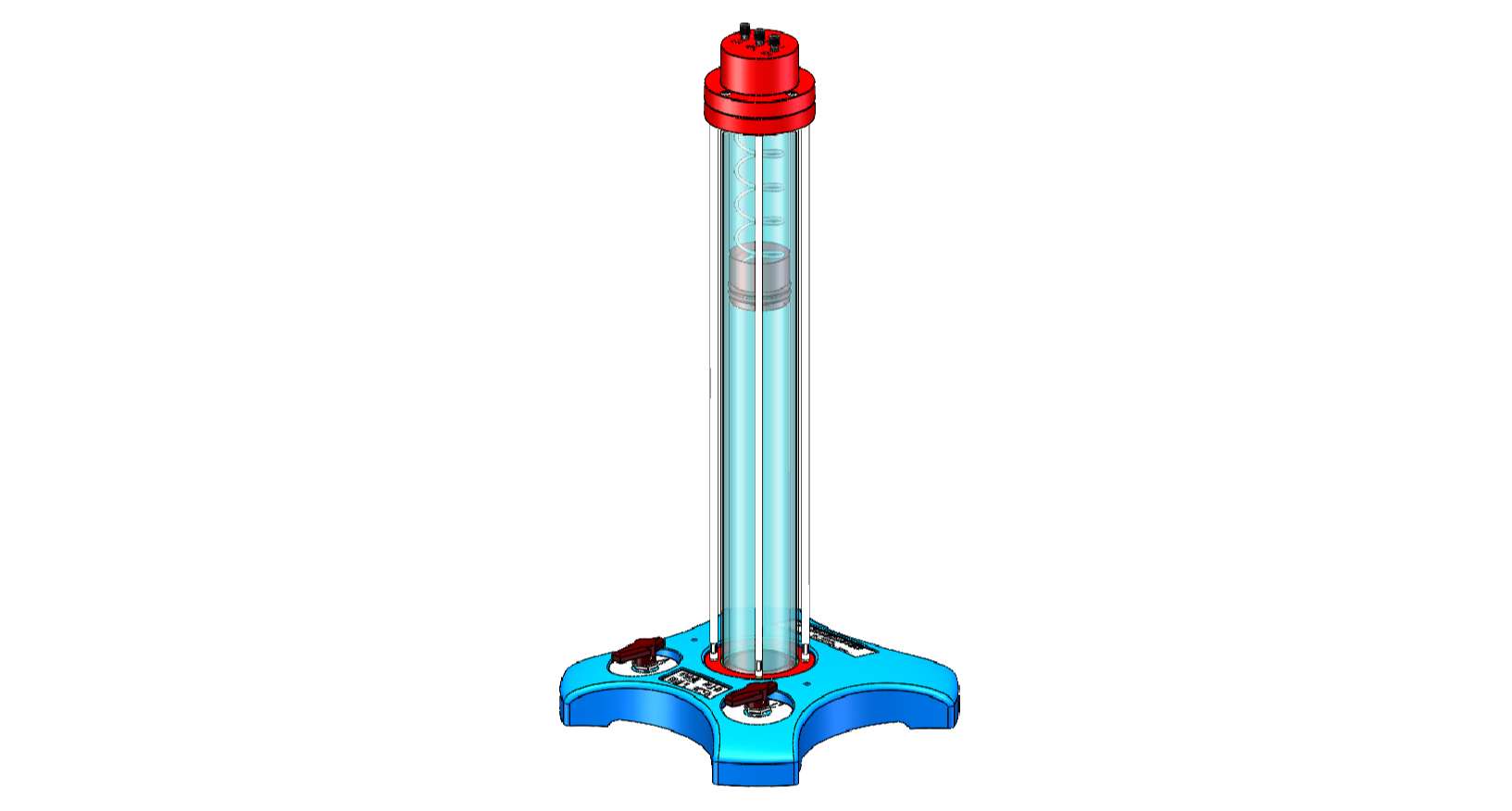

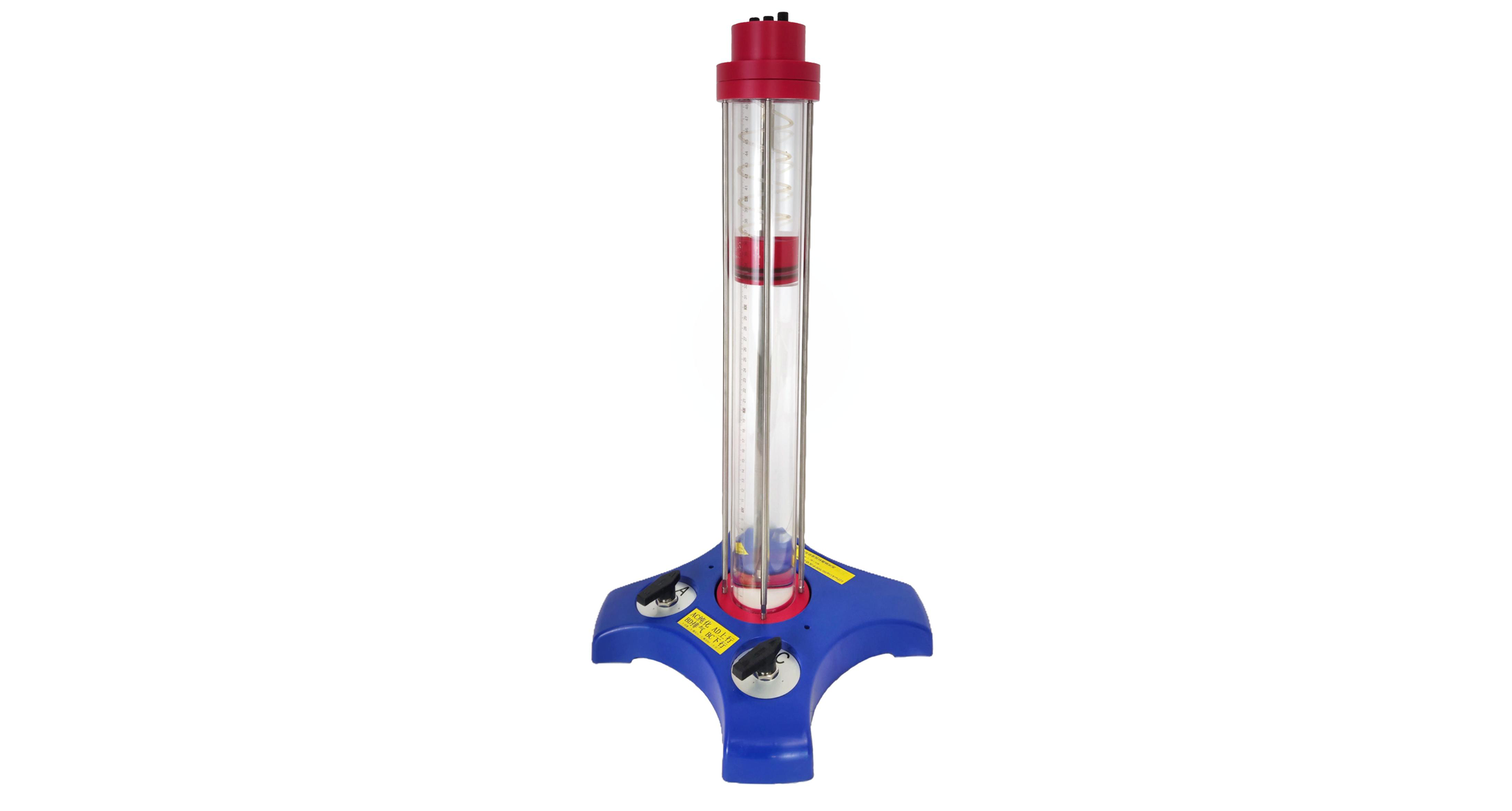

The EZPacking50/500 medium-pressure dynamic axial compression glass chromatography column (Downflow) (referred to as the EZPacking50/500 column) is an innovative chromatography column product. It ingeniously integrates chromatography principles, purification practices, and fluid control valve design, featuring a novel structure, powerful functionality, and convenient packing and unpacking. It delivers excellent chromatographic performance at an exceptional cost-performance ratio. It is designed for process validation, pilot-scale scale-up, and product preparation in downstream biopharmaceutical purification.

Innovative Design, Unique Performance

• Rodless piston design with flexible spring-tube piston connection
• Self-contained hydraulic system with piston integrated into the upper column head
• Piston travel does not change the overall column height
• Two 3-way ball valves for flow path switching
• Four operation modes: degassing, column packing, purification, and column disassembly
• POM frame with thickened column tubing for robust pressure resistance
• Reinforced stainless steel tie rods and jacket protection for safe, reliable operation
• Fast column packing (~10 min) and easy disassembly
• High-efficiency flow distribution for superior column efficiency and peak symmetry
• Integrated base; no clamping required, for easy setup and storage
• Wide adjustable bed height range (0–500 mm)
